Features:

The Heater Position Line is a curbed Shape. This Special Curbed Line offers high Efficiency and Excellent fusing Results for Top Fusing. The 3 pieces of the Heater of the Front part Melt Resin Paste well and the 6 pieces of the Heater of the Rear Part Promote 　　 Fusing Efficiency. This Machine adopts Special Heat-proof Silicon rubber for the Upper Pressure roller and a steel roller as a Lower Pressure Roller for Fine Fusing Results. The Cooling Device (Spot Cooling Device) is equipped as a Standard for Easy Handling of fused Material.

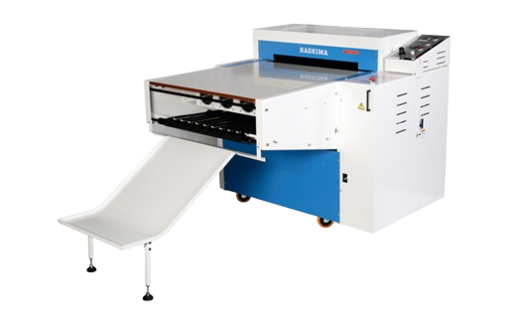

• Description: Rotary Fusing Press
• Model: HPM-600DA
• Voltage: 3P380V
• Rated Output: Heate (7.38KW), Motor (215W)
• Fusing Width: 600mm
• Temperature（MAX）: 195℃
• Pressure（MAX）: 49N/cm(5.0kgf/cm)
• Size: 1325(L)×1200(W)×1100(H)mm
• Weight: 296kg
