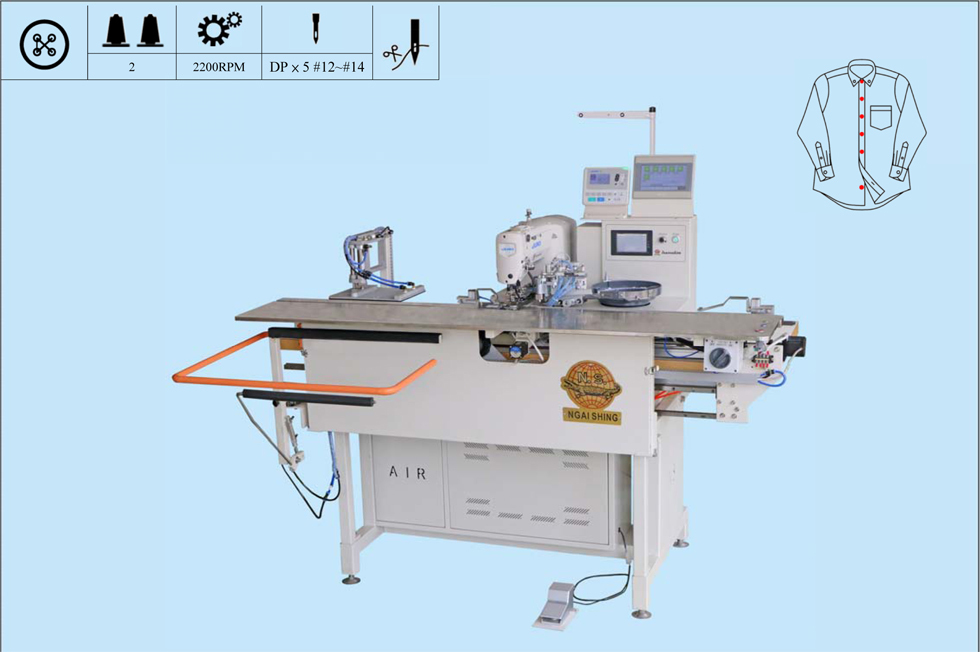

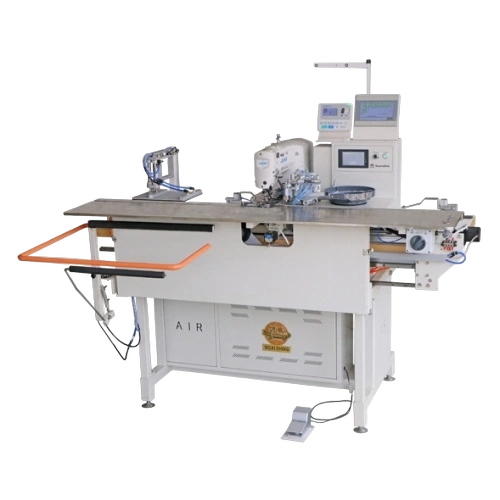

Suitable for automatic button sewing on under placket of men’s or women’s shirt
Suitable for 2- and 4-hole buttons sewing, digitalized adjustment of distance between fabric clips; button sewing quantity can be preset
The distance from button to under placket edge can be adjusted through digital interface according to placket width
Adopt highly accurate button feeding device and automatic fabric pieces feeding system to boost efficiency
With an automatic finished workpiece collecting device
Output of one worker two machines: 3300~3600 pcs/8 hours (6 buttons/piece)

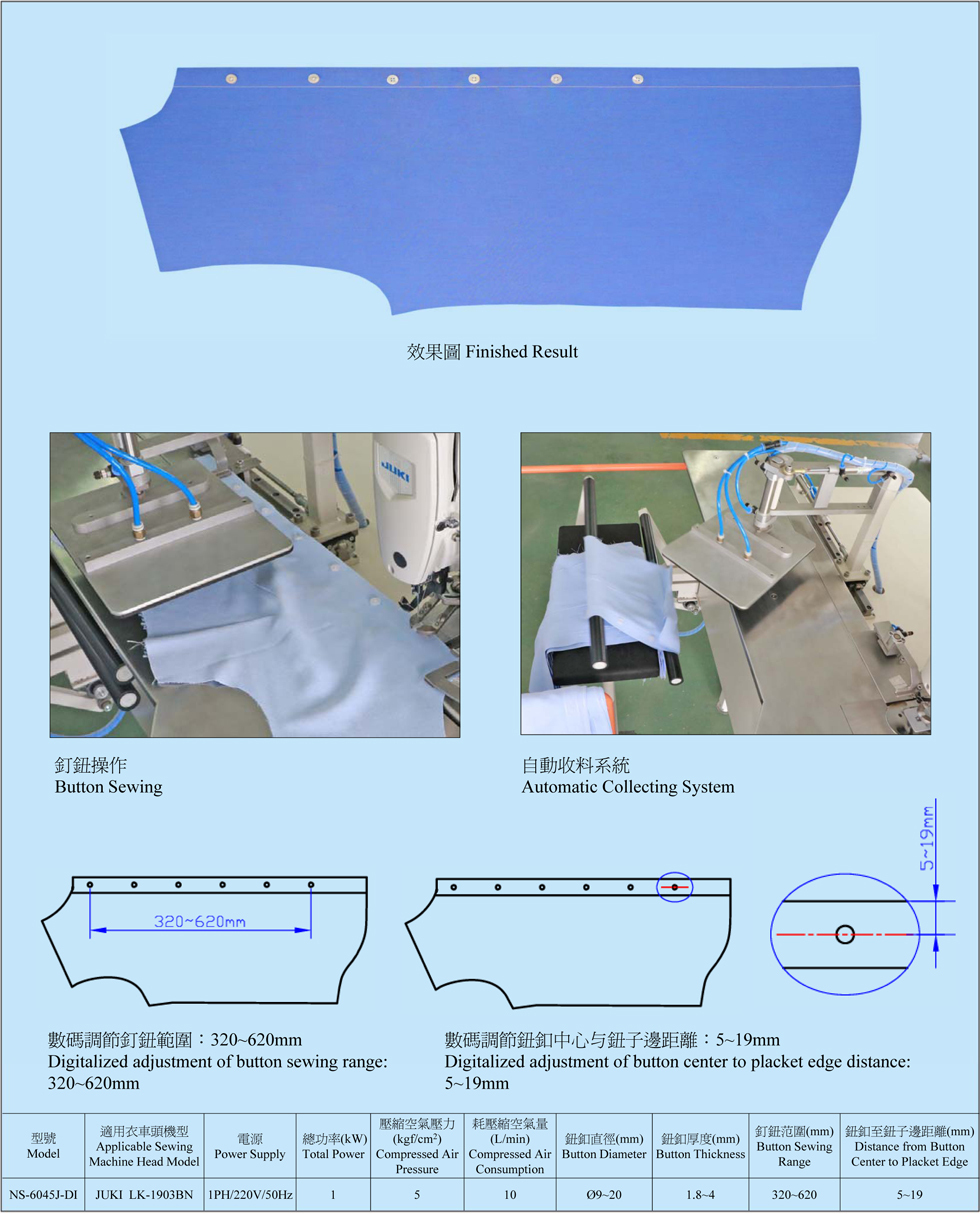

Digitalized adjustment of button sewing range: 320~620mm
Digitalized adjustment of button center to placket edge distance: 5~19mm
Standards:
Sewing head(JUKI LK-1903BNSS301/MC672KNN)
7 pieces of 4-hole button feeding claws(one has been mounted, spec.: 1.0-2.4 *4), the specs of other 6 pieces are respectively: 1.0-2.0, 1.0-2.4, 1.2-2.6, 1.2-2.8, 1.2-3.0, 1.2-3.2
