Features:

Automatic belt warping prevention device. The Upper belt warping prevention system adopts a direct limit switch type like the lower belt warping prevention system. Increased the fusing belt width to 450mm. Adopted rubber driving rollers for non-slip driving. MS MODEL has been equipped with a rotary strip-off device as standard.

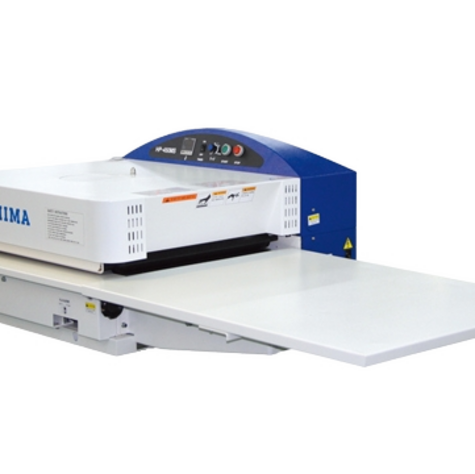

• Description: Compact Fusing Press
• Model: HP-450M, MS
• Voltage: 1P220V
• Rated Output: Heate (4kw)
• Motor：33W
• Temperature（MAX）: 195℃
• Pressure（MAX）: 1.5kg/cm2
• Belt Speed（MAX）: 8.7m/minutes
• Heating Time: 5～20 second
• Fusing Width: 450mm
• Size: W-1,660mm D-880mm H-490mm
• Weight: 152kg
