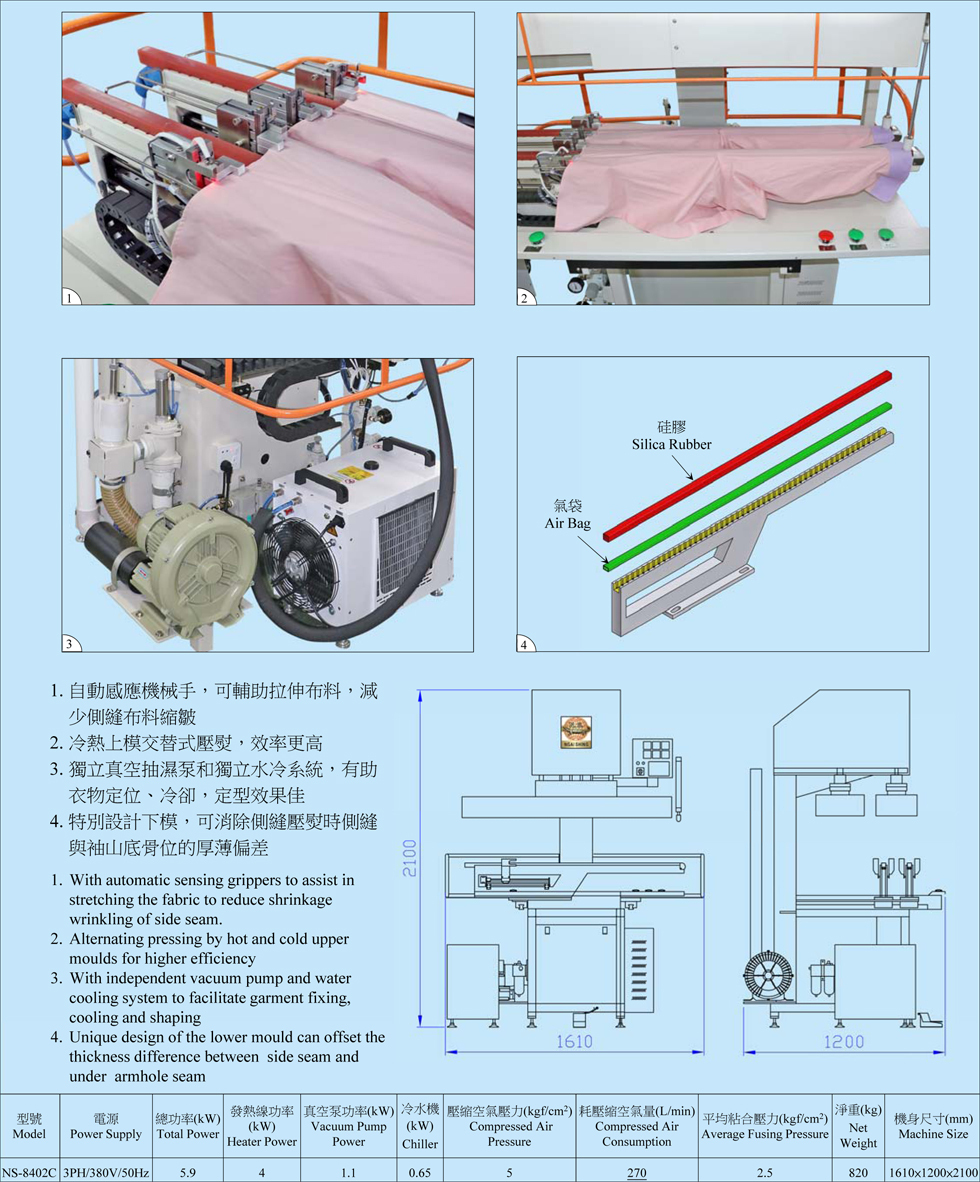

The lower mould is equipped with automatic sensing grippers to assist in stretching the fabric. Users can adjust the stretching size according to the degree of fabric shrinkage, jointly working with the alternating pressing by hot and cold moulds, the wrinkling caused by sewing process and cold shrinkage of interlining and fabric can be reduced.
Adopt PLC and user friendly touch screen for operation

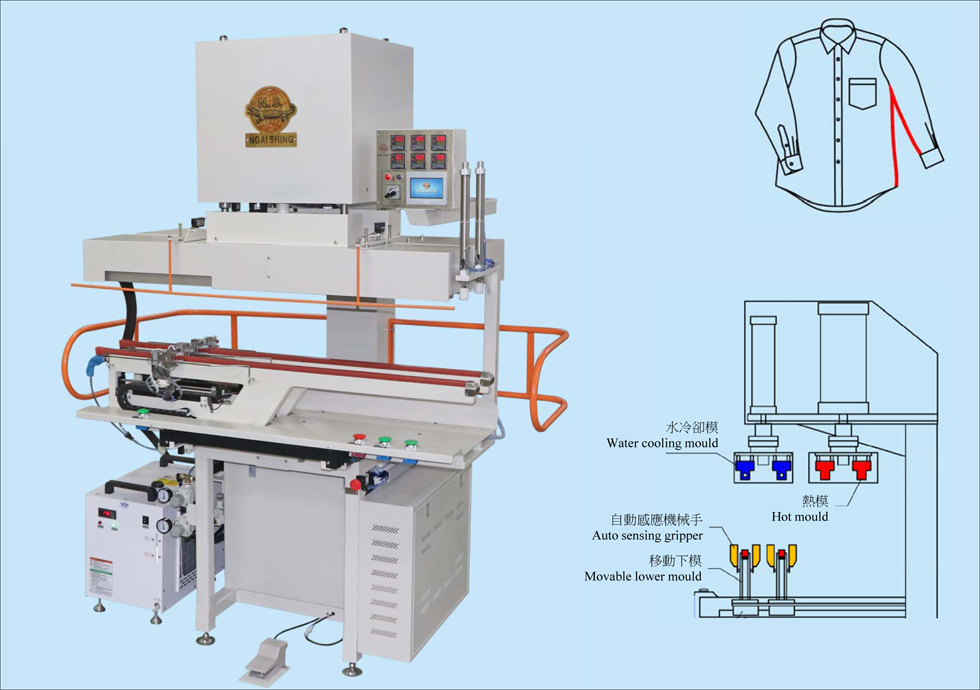

Lower mould horizontally moving in and out, upper mould vertically pressing, evenly distributed pressure and smoother pressing effect
Two pressing modes for hot mould, i.e. light press and heavy press, are available for selection, jointly working with six independent digital thermostats for accurate temperature control to cater for different fabrics
The cooling mould adopts an independent water cooling system, which has a fast cooling speed and excellent shaping effect
Lower mould airbag combined with pressure-proof high temperature silica rubber, can offset the thickness difference between side seam and under armhole seam, thereby to achieve perfect pressing effect
With independent vacuum pump to facilitate garment fixing, cooling and shaping
Side seam pressing length 800-1050mm, side seam pressing width 23mm
