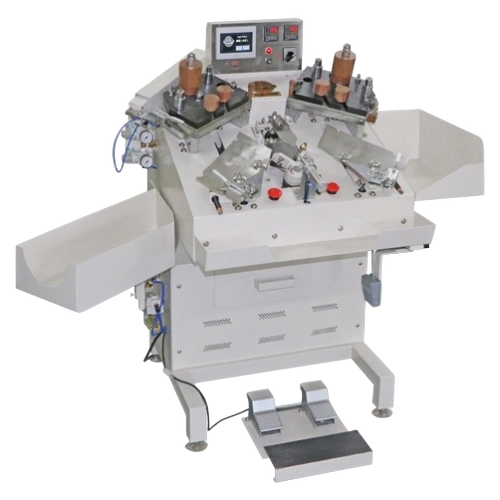

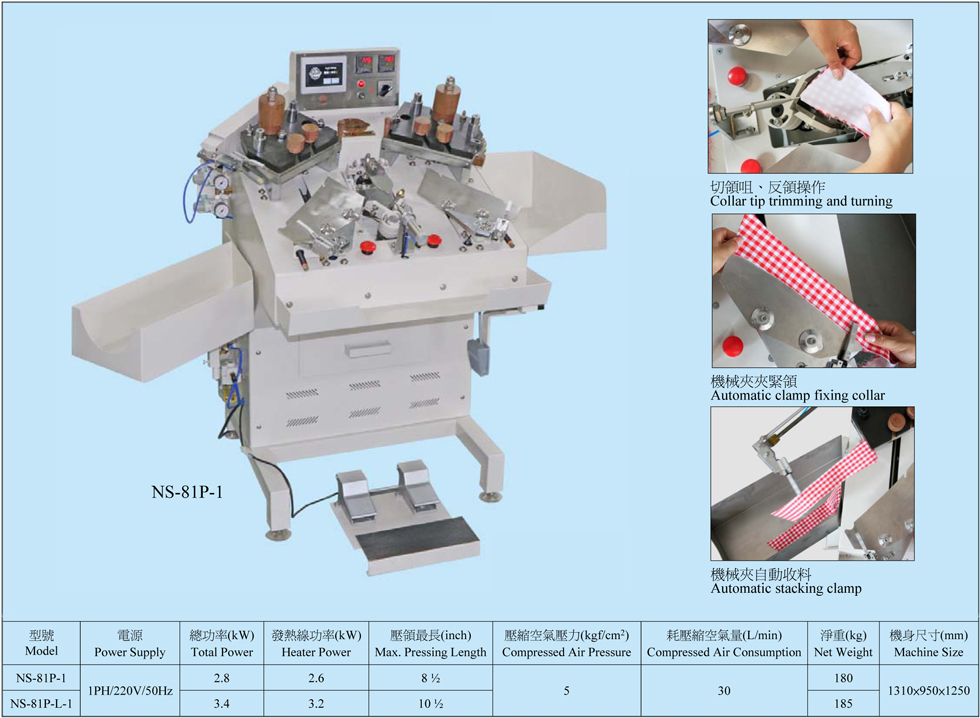

Features:

• Suitable for collar tip trimming, turning and blocking
• Adopt PLC and human friendly touch screen for operation
• Electric heated design with independent digital thermostat for temperature control
• Lower mould has selector switch for ejector pin to cater for the requirement of different fabrics
• Ultra long collar pressing mould
• With automatic clamp to fix collar and manipulator on the left side to collect material, it can reduce a lot manual operation
• High production efficiency: it could finish 1800 to 2000pcs of collars every 8 hours
• Installed standard cutter:  C33-00117-3-V1 88° cutter

Options:

• C33-00117-1 75° cutter, C33-00117-3-V1 88° cutter,
• C33-00117-4-V1 105° cutter
